SVC (TND, TNS) series single-phase, three-phase high-precision automatic AC voltage regulators, its structure is composed of contact auto-coupling regulator, servo motor, automatic control circuit, etc. , the auto-sampling control circuit sends out a signal to drive the servo motor, adjusts the position of the carbon brush of the auto-coupling regulator, so that the output voltage is adjusted to the rated value and reaches the stable state. Three-phase high-precision automatic AC regulator is a combination of SVC series single-phase product performance, its input phase system is divided into three-phase four-wire system, output voltage is line voltage 380V in the rated capacity range, the utility model can simultaneously supply power supply voltage for three-phase 380V electrical equipment, and has the function of over-voltage protection

Tel:

(+86) 021-59507565

  • Product Description
  • Product parameters

  • SVC (TND TNS) series single-phase, three-phase high-precision automatic AC regulators are common voltage regulators. The series has many advantages, such as variety, full specifications, beautiful appearance, economy and practicability. The utility model has the advantages of small volume, light weight, no distortion of output waveform, high efficiency, stable performance, reliability, simple maintenance, long-term unmanned operation, etc. , and has the short delay start, over-voltage/under-voltage protection functions.

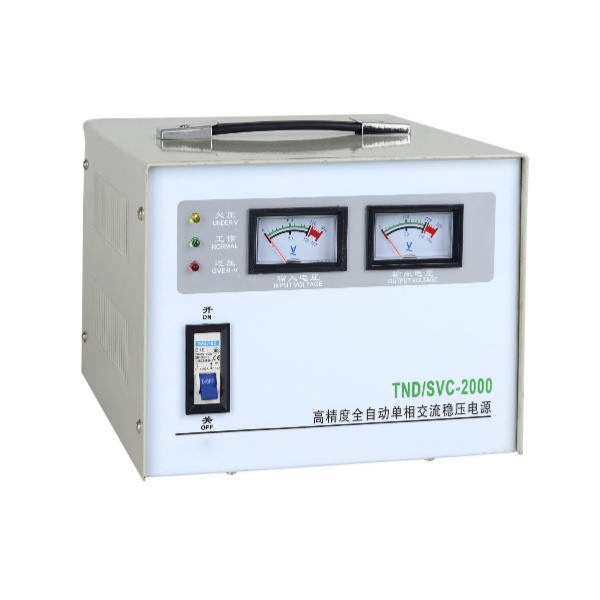

    SVC (TND) series single-phase high-precision automatic AC regulator, by the contact auto-coupling voltage regulator, servo motor, automatic control circuit and so on. When the grid voltage is unstable or the load changes, the auto-sampling control circuit sends out a signal to drive the servo motor, and adjusts the position of the carbon brush of the auto-coupling voltage regulator. Can automatically stabilize the output voltage. SVC TND series household single-phase automatic regulators operate automatically and generate a stable power supply when fluctuations are detected. The automatic voltage regulator is used for household use, such as refrigerators, deep freezers, bottle water coolers and air conditioning equipment.

    Application:

    mainly used in computer room, laboratory, laser cutting machine, precision machine tool, printing machine, Elevator, hospital, construction site, automatic production line, communication equipment and other places that need voltage stability.

  • Product Name SVC TNS Series Automatic Voltage Stabilizer
    Technology Servo motor control system+Micro compute programmed control
    Model Number SVC TNS SVC TND
    Capacity 1~1000KVA 1~1000KVA
    Phase Three Phases Single Phase
    Input Voltage Range 312-450VAC (Can be customized) 150-250V(Can be customized)
    Output Voltage  380VAC±1.5%~3.5%(Can be customized) 220V±3%, 110V±6%
    (Can be customized)
    Adjust Time <1 sec.(against 10% input voltage deviation)
    Frequency 50Hz/60Hz
    Delay 3 second
    Temperature protection 110℃±10℃
    Ambient temperature -10~45℃
    Relative humidity <90%
    Wave form distortion No additional wave form distortion
    Efficiency >95%
    Dielectric strength 1500V/min
    Insulation resistance ≥5MΩ
    Display LED

    Design Ability OEM&0DM is welcome
    Certification CE，IS09001:2015
    Packing Standard Export Packing
    Payment Term Trade Assurance,T/T,L/C,D/A,D/p Western Union MoneyGram and so on
    Delivery time 7-10 working days after payment received
