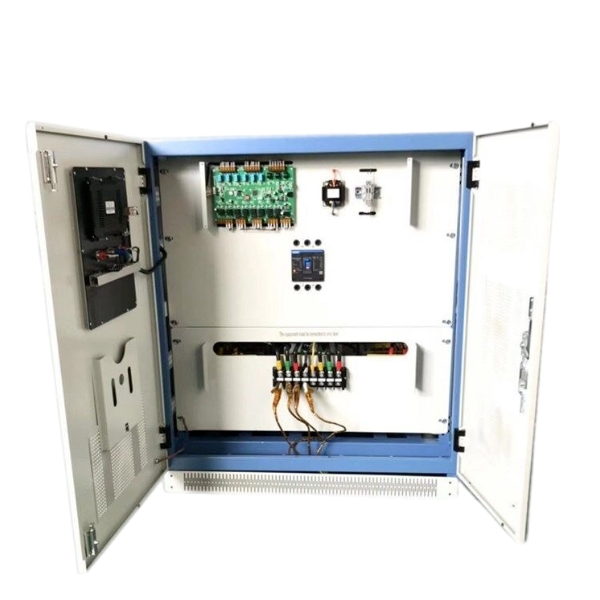

SBW-F three-phase divider regulator
SBW-F three-phase divider regulator
SBW-F three-phase divider regulator
SBW-F three-phase divider regulator

SBW-F three-phase divider regulator

Compared with three-phase high-power compensation voltage regulator, it has the advantages of large capacity, low loss, no wave distortion, stepless voltage regulation, stable output and accurate indication Manual automatic control switch, with over-voltage, under-voltage, wrong phase, lack of phase, fault self-stop, bypass switch device, automatic power-on and other devices, perfect protection function, strong control function; Applicable to a wide range of loads, can withstand instant overload, variety, long-term continuous work, stable and reliable.

Tel:

(+86) 021-59507565

Share Link：
title= title= title=
  • Product Description
  • Product parameters

  • SBW-F series three-phase divider full automatic compensation voltage regulator is an improved voltage regulator of SBW series. It is suitable for unbalanced power grid with three-phase voltage input, three-phase output can be automatically balanced, and maintain the advantages of smooth voltage regulation.

    Product details:

    Pole type voltage regulator is made of heat-resistant h-class enameled wire; coil is made of heat-resistant 180 ° C insulating paint with epoxy coating on the surface; coil and carbon brush sliding parts are polished, the iron core surface increases antirust treatment, good insulation, high temperature resistance, strong moisture resistance, low noise, low coil loss, can effectively improve the service life.

    The compensating transformer is made of temperature-resistant h-class enameled wire, the transformer is made of temperature-resistant 180 ° C insulating varnish, the coil is designed without framework, and there are ventilation slots between the coils, and the iron core is made of new high-quality cold-rolled silicon steel sheet, it has good insulation, high temperature resistance, strong moisture resistance, low noise, low temperature rise, high efficiency and long service life by adding epoxy coating on the surface.

    High quality intelligent control circuit board for voltage regulator control system, step-up/step-down uses 30A relay control (30A relay drives motor current about 1A, start current about 5-7A, enough margin, can work frequently) ;

    7 inch LED display, can display input voltage, output voltage, current, frequency, fault, parameters can be set. There are over-voltage, under-voltage, over-current, lack of phase, fault, and other situations can be automatically uninterrupted switching power function. Electrical accessories contactors are using CHINT brand, can also be based on customer demand to use other brands, such as Schneider, Abb.

    Products used laser cutting machines, precision machine tools, printing machines, and other industrial machinery; elevators, shopping malls, office buildings, hospitals, construction sites, automated production lines and all need voltage stability.

  • Full-automatic Voltage Stabilizer
    Model DBW SBW SBW-F
    Capacity 1KVA-2500KVA (customized)
    Number of Phase 1Ph 3Ph 3Ph
    Voltage Regulating Method — Three-phase unified regulation Three-phase split phase regulation
    Input Voltage 220V  (Can be Customized) 380V,400V,415V (Can be Customized) 380V,400V,415V (Can be Customized)
    Output Voltage 220V  (Can be Customized) 380V,400V,415V (Can be Customized) 380V,400V,415V (Can be Customized)
    Input Voltage Range ±10%~±50%(Can be Customized)
    Stabilizing Accuracy  ±1%~ ±5%(Settable)
    Frequency 50Hz/60 Hz
    Power Factor PF≥0.8
    Efficiency ≥98%
    Response Time ≤1.5S(when the input voltage is in range of ± 10%)
    Waveform Distortion   ≤0.1%
    Over Voltage Protection The output voltage is higher than set value, automatically switch to mains power without interruption.
    Under Voltage Protection The output voltage is lower than set value, automatically switch to mains power without interruption.
    Overload Protection If over current than set value, automatically switch to mains power without interruption.
    Phase Loss Protection None When there is phase loss, it will alarming and automatically switch to mains power without interruption.
    Short Circuit Protection When the load device is short circuited, it will automatically switch to mains power without interruption.
    Bypass When the voltage stabilizer is repaired, the power can transfer to bypass automatically
    LED Display Screen 7 inches, Real-time display of the input voltage,output voltage,working current,etc.
    Circuit breaker Built-in CHINT brand cuicuit breaker for 30~250KVA voltage stabilizer (Can be customized)
    Cooling System Air/Fan system
    Insulation Resistance >100MΩ
    Noise Level <60dB/m
    Ambient Temperature -10ºC-45ºC ( No condensation )
    Relative humidity 20%-95%
    Warranty 12 month
