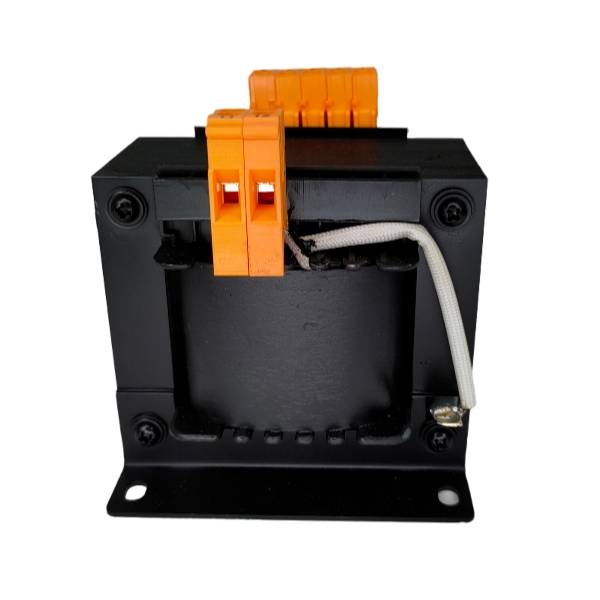

JBK control transformer
JBK control transformer
JBK control transformer
JBK control transformer
JBK control transformer
JBK control transformer
JBK control transformer
JBK control transformer

JBK control transformer

This kind of transformer is different from other kinds of transformers in that it is small and beautiful, it can work effectively in rated load for a long time, and its temperature resistance and electrical strength reach H level.

Tel:

(+86) 021-59507565

Share Link：
title= title= title=
  • Product Description
  • Product parameters

  • JBK1/2/3/4/5/6 series machine tool control transformer is suitable for the frequency 50Hz/60Hz AC circuit, the input voltage generally does not exceed 500V. As all kinds of machine tools, mechanical equipment in the general electrical control power supply, local lighting and power indicator. Adopting advanced technology and strict design for manufacturing, and selecting high-quality terminal, with excellent performance, reliable work, low energy consumption, small size, wiring safety, wide applicability and other characteristics, is an ideal control power supply.



    Product details advantage

    1. The windings are made of class H enameled copper/aluminum wire, which can withstand temperature up to 180 ° C, is well insulated and durable.

    2. New high-quality cold-rolled silicon steel core (oriented and non-oriented optional) , good heat dissipation, low core loss;

    3. The transformer whole H class insulation varnish vacuum impregnation, has the extremely high heat resistance, and anti-corrosion, the running noise is low, the insulation performance is good.



    This series of single-phase transformer is widely used in CNC machine tools and mechanical equipment, elevator control cabinet, working lighting and signal lamp power supply, can also be used as a small power supply.

  • TECHNICAL PARAMETERS
    Brand Leilang Electric
    Product Name Single phase transformer
    Product Model BK/DG/JBK/JBM
    Primary Voltage (VAC) 110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Customized)
    Secondary Voltage (VAC) 6, 12, 24, 36, 48, 110/48, 220/48, 230/36, 240/120, ...(Customized)
    Frequency 50Hz/60Hz
    Number of phase 1 Ph
    Insulation Level Class-F / Class-H
    Temperature Rise F: ≤125K (Max.)  / H: ≤125K (Max.)
    Winding Material H grade Enameled copper wire or enameled aluminum wire (Optional)
    Insulation Process Class-H varnish,VPI (vacuum pressure impregnation)
    Core Structure EI
    Connection method I/I
    Impedance Voltage 1%-20% (Customized)
    Electrical strength 3000VAC for 1 minute without breakdown or flicker
    Induced withstand voltage  2 times frequency/2 times voltage/1 minute
    Insulation resistance  ≥ 500M Ω
    Grounding resistance  25A ＜ 80m Ω
    Transformation ratio <3%
    Cooling Natural cooling or air cooling
    Protection level IP20，IP23，IP45，IP54，IP65 (Customized)
    Noise level ≤ 35-65dB (within 1 meter)
    Efficiency ≥ 80-99%
    Environmental temperature  -25 ℃~+40 ℃
    Altitude ＜ 2000M
    Relative humidity <90%
    Service life (design theoret) 30 years
    The technical parameter for reference only, for exactly technical information, please feel free to contact us!
