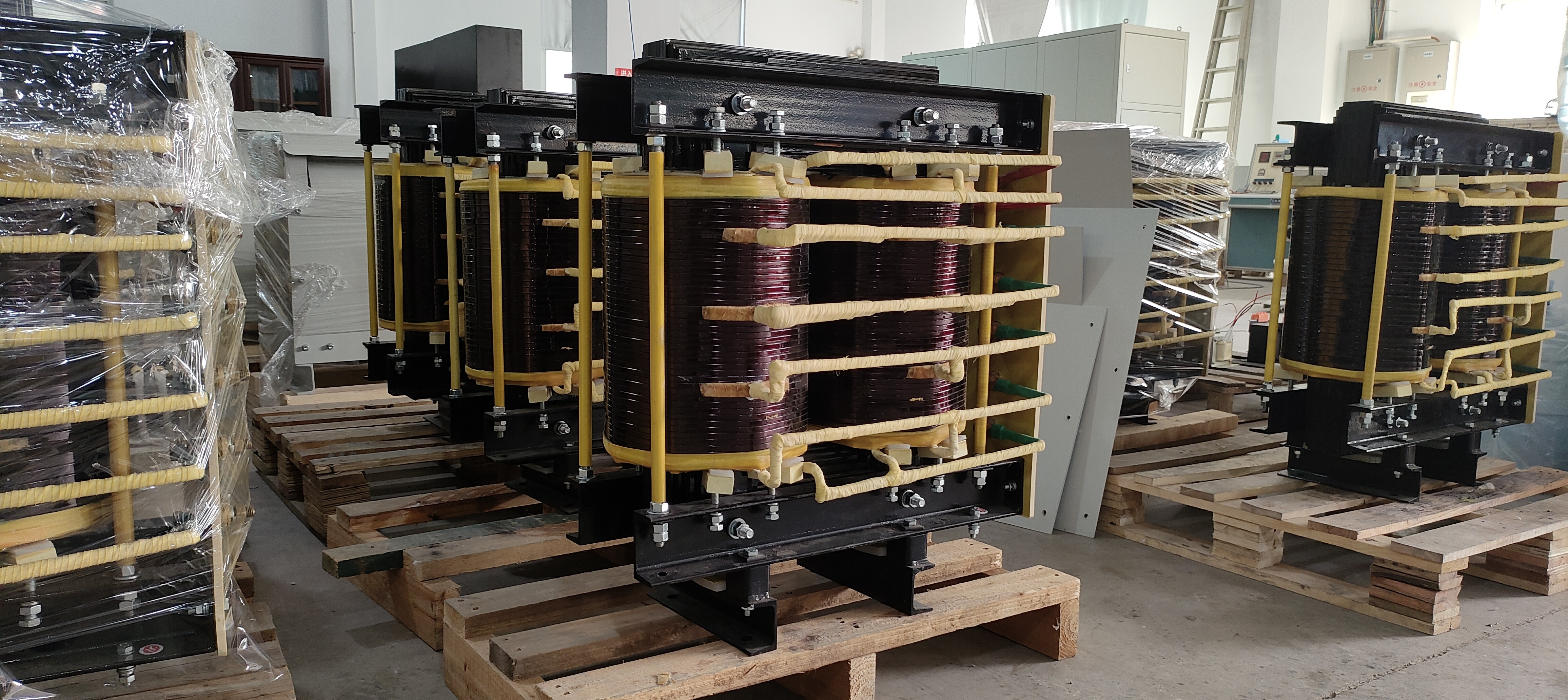

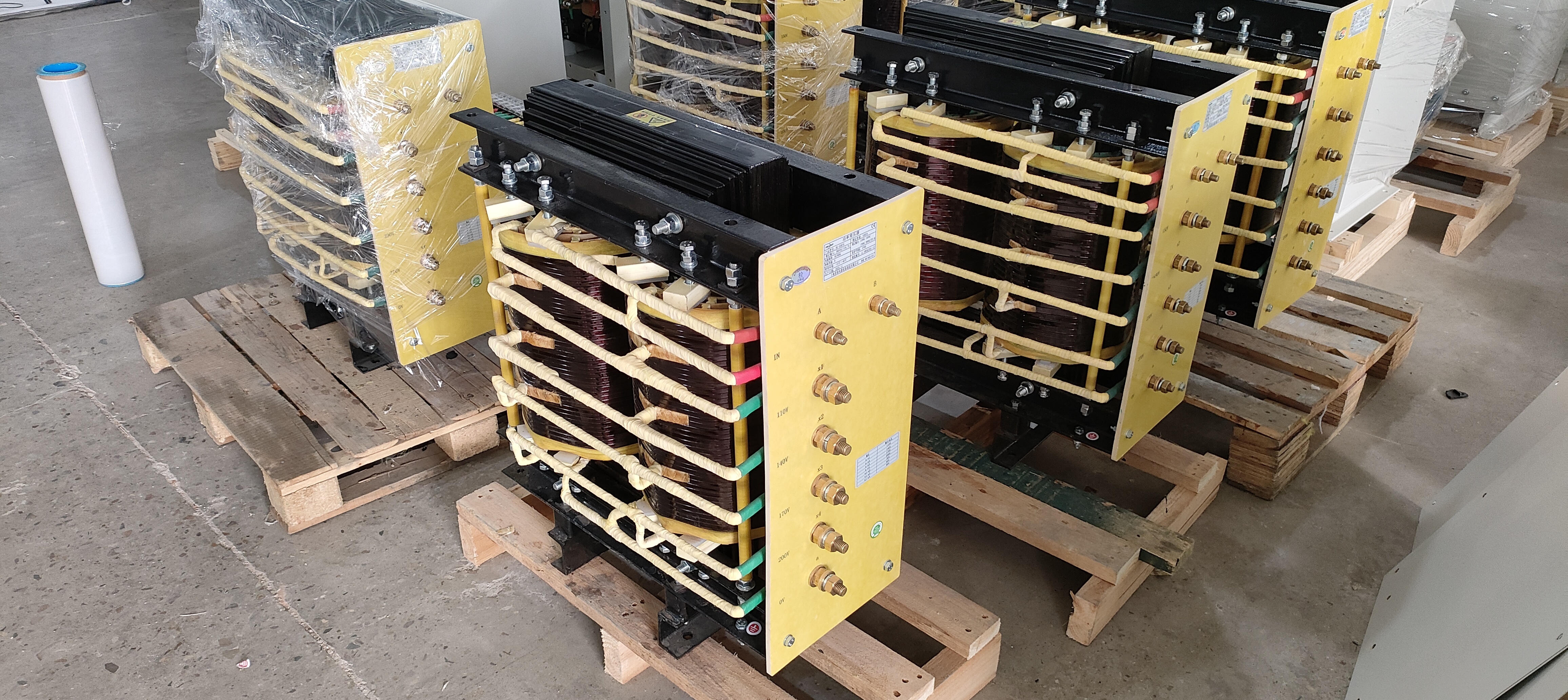

DDG (single-phase) DSG (three-phase) low-voltage large current, electric furnace heating transformer
- Product Description
- Product parameters
-
Product details advantages:
1. The terminal adopts high quality terminal or copper bar, which has high temperature resistance, high pressure resistance and convenient operation.
2. The windings are made of class H enameled copper or aluminum wire with temperature resistance of 180 ° C and withstanding 5000V voltage.
3. New cold-rolled silicon steel core, good magnetic flux, low noise, low iron loss, more energy-saving;
4. The transformer is vacuum impregnated with 180 ° C insulating varnish, and the oven is dried at high temperature, which effectively reduces the vibration and noise in operation, increases the electric strength, prevents corrosion and prolongs the service life.
Application:
electric furnace heating transformer can be widely used in industry, such as chemical, smelting, short-circuit upflow, heating, annealing spot welding, touch welding, temperature rise test, current impact, electroplating, stainless steel wire drawing, coating, etc. .
-
Technical Parameters
Model No. DDG (single-phase) / DSG (three-phase)
Rated capacity 0.1KVA ~ 2500KVA (customizable)
Input voltage 220V, 380V, 650V (customizable)
Output Voltage 3V, 6V, 9V, 12V, 15V, 24V, 36V (customizable)
Frequency 50Hz / 60Hz
Insulation class F / H (optional)
Winding wire Class H enameled aluminum wire or copper wire (optional)
Insulation method Vacuum impregnation with H-class insulating varnish
Temperature rise Class F ≤100K / Class H ≤125K
Voltage withstand test Primary to secondary 2.5KV/1minute
Primary to ground 2.5KV/1minute
Secondary to ground 2.5KV/1minute
Insulation resistance Primary to secondary 2500V >100MΩ
Primary to ground 2500V>100MΩ
Secondary to ground 2500V>100MΩ
Inductive withstand voltage 2 times frequency / 2 times voltage / 1 minute
Ground resistance 25A<100mOhm
Temperature rise F class ≤100K; H class ≤125K
Impedance voltage about 4%
Variation ratio <3%
Cooling method Self-cooled or air-cooled
Protection level IP20, IP23, IP45, IP54, IP65 (can be customized)
Noise ≤35-65dB (within 1 meter)
Working efficiency ≥97%
Ambient temperature -25℃~+40
Altitude ﹤2000M
The above parameters are for reference only, please contact customer service for specific parameters, subject to actual design parameters!Translated with DeepL.com (free version)
