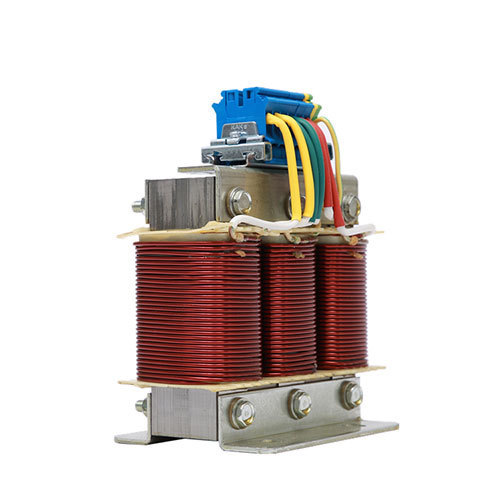

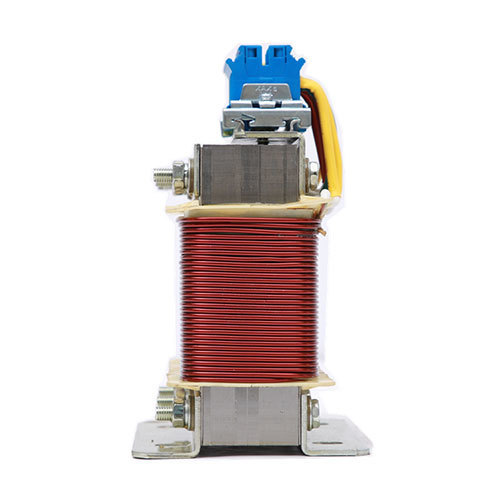

ACL/OCL Input Reactor/Output Reactor, matching inverter
- Product Description
- Product parameters
-
ACL input (in line) reactor, OCL output (out line) reactor is suitable for reactive power compensation and harmonic control system, which can improve power factor and filter harmonic to restrain voltage distortion, therefore, the quality of power network can be changed and the safe operation of power system can be guaranteed.
The input-output reactor is used to limit the current impulse caused by abrupt voltage change and operation overvoltage, the spike pulse contained in the smooth supply voltage, or the voltage defect caused by the phase change of the smooth bridge rectifier circuit, it can not only prevent the interference from the power grid, but also reduce the harmonic current generated by the rectifier unit to the power grid pollution.
Our I/O series reactors are made of excellent imported silicon steel sheets and refined by professional process. They are characterized by small size, low temperature rise and no noise.
The reactors produced by our company, it can be used with Siemens, ABB, Sanken, Hitachi, Toshiba, Panasonic, anchuan, Prefab, Danfoss, Fuji, continental, LG, Omron, Hyundai, Schneider, Lunz, Emerson, Cornwall and other domestic and foreign brands. T
he characteristic power supply has obvious interference to other equipment (interference, overvoltage) the power supply the phase-to-phase voltage unbalance > 1.8% of the rated voltage the line with extremely low impedance (the power transformer is more than 10 times of the rated value of the converter) in a line to reduce the line current to install a large number of converters to use the cos φ (power factor) correction capacitor or the power factor correction unit
-
工作电压 220/380V/440V690V （可定制） 工作频率 50/60Hz 工作电流 2A~2500A 绝缘等级 F级/H级 压 降 ＜4% 最大电流 额定电流×1.5,持续60S 噪 音 ≤65dB(A) (1米） 温 升 ≤100K 抗电强度 铁芯-线圈3000VAC/50Hz/5mA/10S无飞弧击穿 绝缘电阻 1000VDC 绝缘阻值≥100MΩ 防护等级 IP00（无机箱）IP20（机箱防护等级可定制） 环境温度 -25℃~+40℃ 海拔高度 ≤1000m 相对湿度 ≤90%RH 使用条件 周围无有害气体，无易燃易爆物品；周围环境应有良好的通风条件，如装在柜内，应加装通风设备。 产品执行标准 IEC289:1987电抗器、GB10229-88电抗器(eqv IEC289:1987)、JB9644-1999半导体电气传动用电抗器
